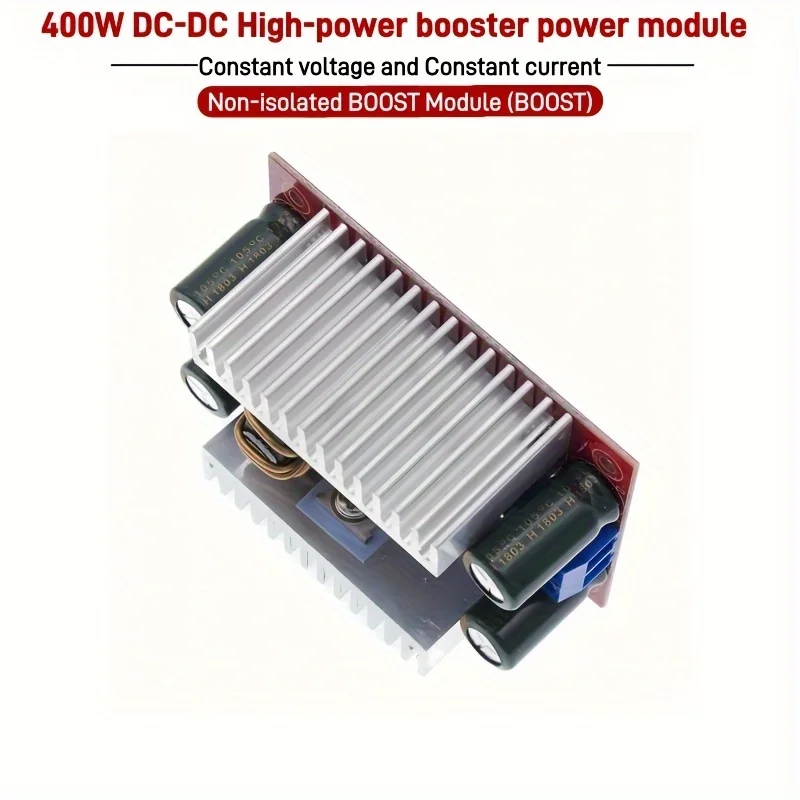

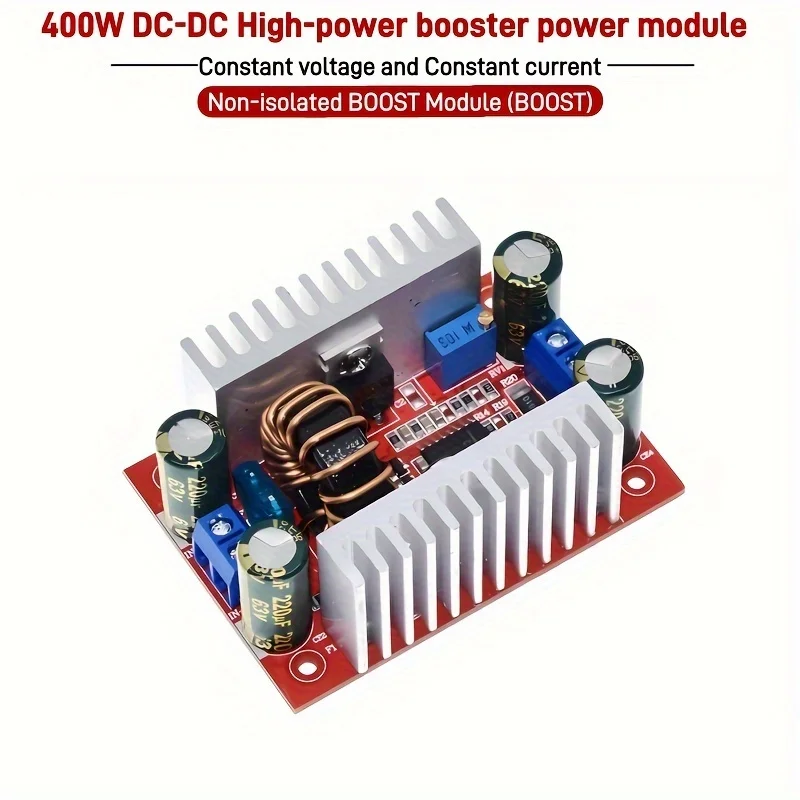

DC-DC 400W 15A Step-up Boost Converter Constant Current Power Supply LED Driver 8.5-50V to 10-60V Voltage Charger Step Up Module

Description

Product Name: Booster module
Module model: DC-DC boost power supply
Power protection: No output short circuit protection
Input voltage: DC8.5-50V
Output voltage: DC10-60V continuously adjustable
Input current: 12A. If the MAX exceeds 7A, please increase the current (related to the input and output voltage difference, the larger the voltage difference, the smaller the output current)
Working frequency: 150KHz
Conversion frequency: 96% (highest)
Output power:=input voltage * 10A
Constant current range: 0.2-12A
Working temperature: 40 ℃ -85 ℃
Direction of potentiometer adjustment: clockwise (increase), counterclockwise (decrease)
Wiring method: Wiring terminals

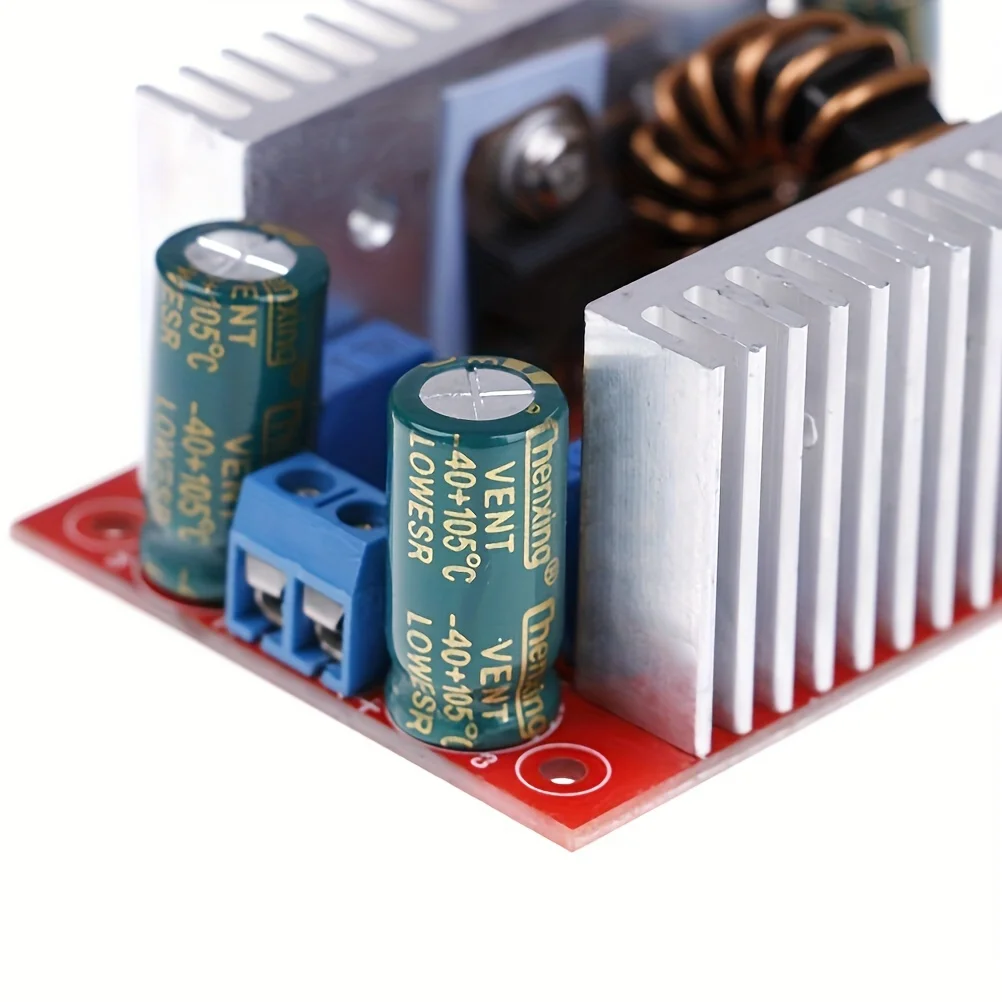

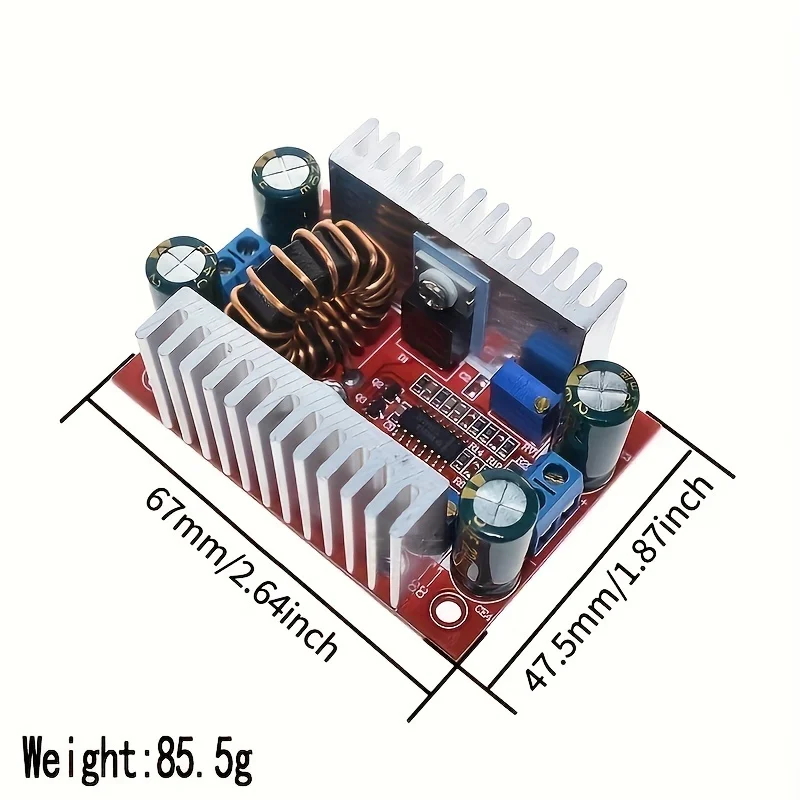

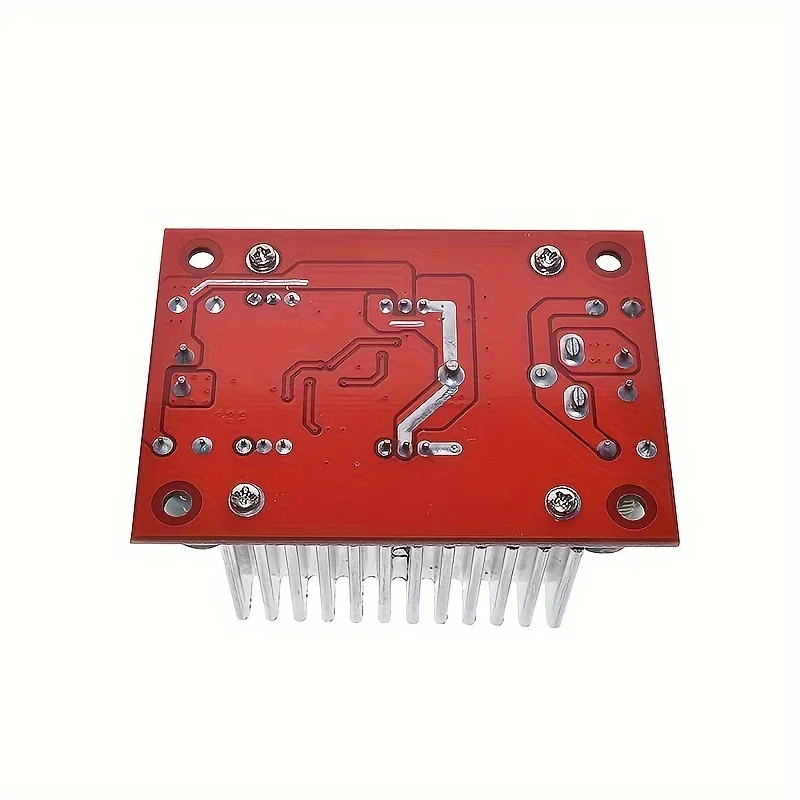

Module size: 37mm * 48mm * 28mm
Product features
Output voltage/current regulation method

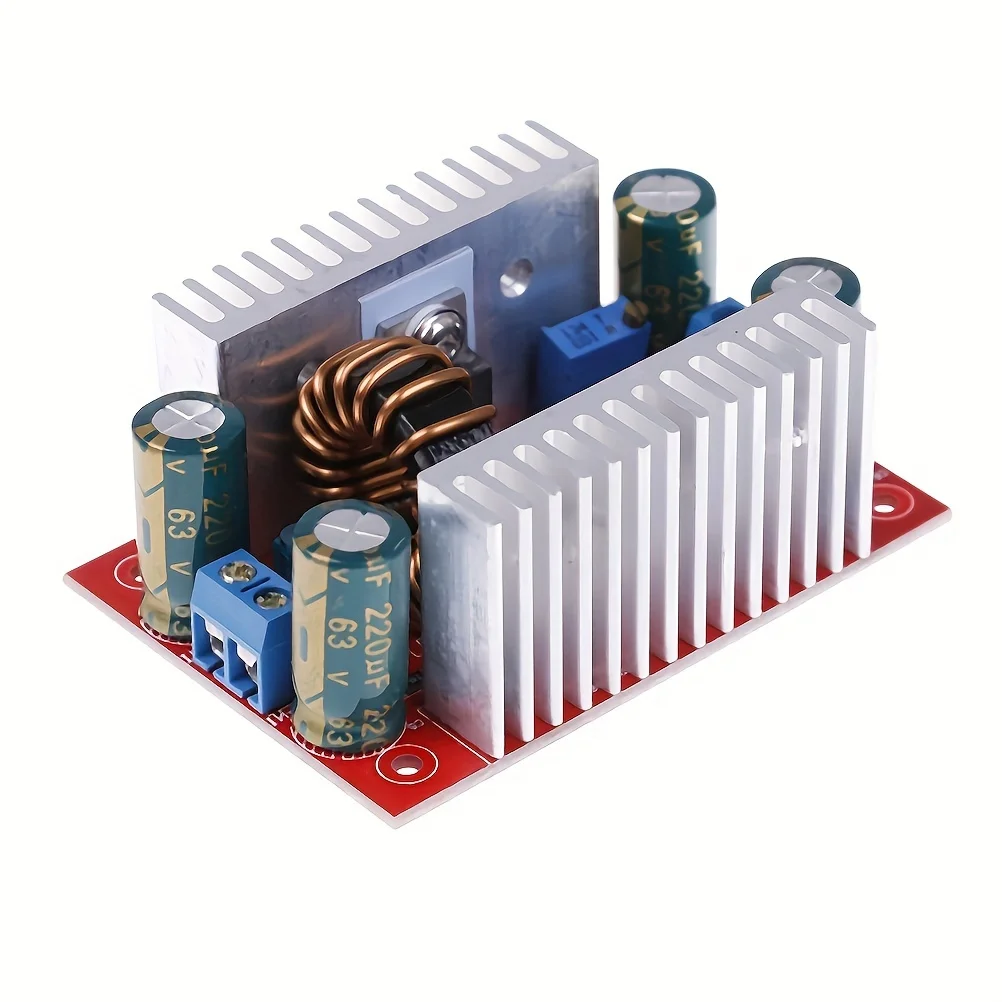

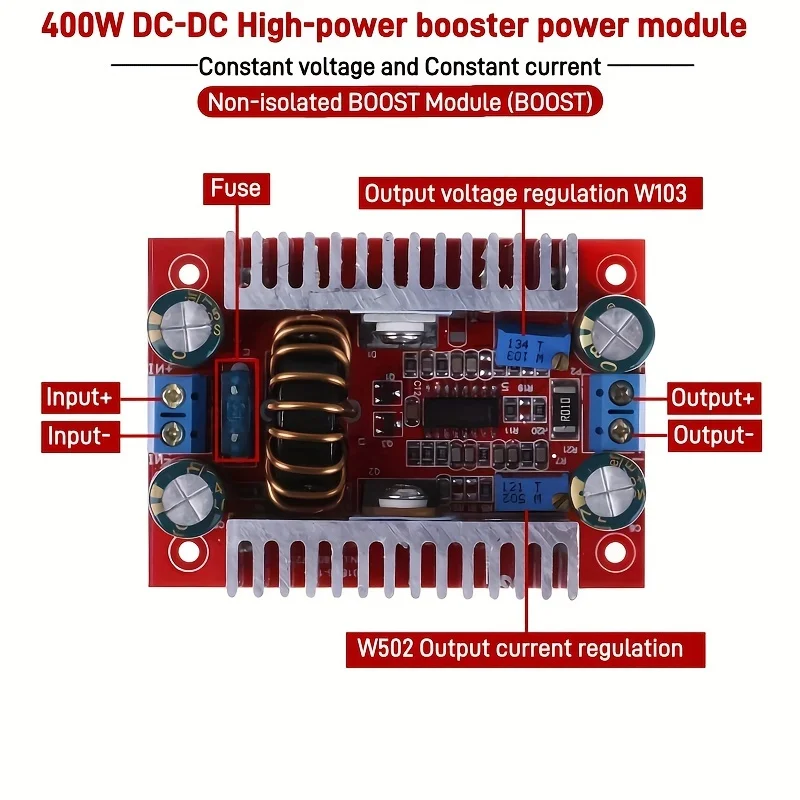

1. Adjust the “W 103” potentiometer and set the output voltage to the desired value based on your battery or LED. (Increase the reverse clock voltage and decrease the clockwise clock voltage)
2. Turn the “W 502” potentiometer counterclockwise for about 30 turns, set the output current to the minimum, connect the LED, and adjust the RV2 potentiometer to the current you need. For battery charging, after discharging the battery, connect it to the output and adjust RV2 to the current you need. (When using it for charging, be sure to use the discharged battery for accurate adjustment, because the more remaining battery charge, the lower the charging current.) (Reduce the reverse clock current and adjust it clockwise.)
Current increase)
note:
Please do not adjust the current through short circuits. The circuit structure of the boost module cannot be adjusted through short circuits.
Application scope
1. DIY a regulated power supply, with an input of 12V and an adjustable output of 12-50V
2. To power your electronic devices, you can set the output value according to your system voltage.
3. As a car power supply, it can power your laptop, PDA, or various digital products.
4. DIY a high-power laptop mobile power supply: paired with a large capacity 12V potassium battery pack, your laptop can light up wherever you go
5. Solar panel voltage stabilization.
6. Charge batteries, carp batteries, etc.
7. high-power LED lights drive.
